Surface-Mount Magnetic Lock with Sensors & Timer

The MAGLOC100S-DST is a sleek electromagnetic door lock designed for indoor access control. It combines a robust 270kg holding force with smart features like door/lock status sensors and an adjustable release timer. Powered by either 12 V or 24 V DC, it integrates seamlessly into modern alarm systems for enhanced security and peace of mind.

Key Features:

• Surface mount design ideal for standard door frame installation
• 270kg (595lb) holding force for reliable locking strength
• Anodised aluminium body with zinc finish - durable and professional
• Built-in sensors for both doors and lock status monitoring
• Timer delay (1-90 seconds) for customisable unlock settings
• Selectable 12 V / 24 V DC power input for versatile power options
• Spike protection to guard against voltage surges
• Fail-safe configuration releases when power is removed

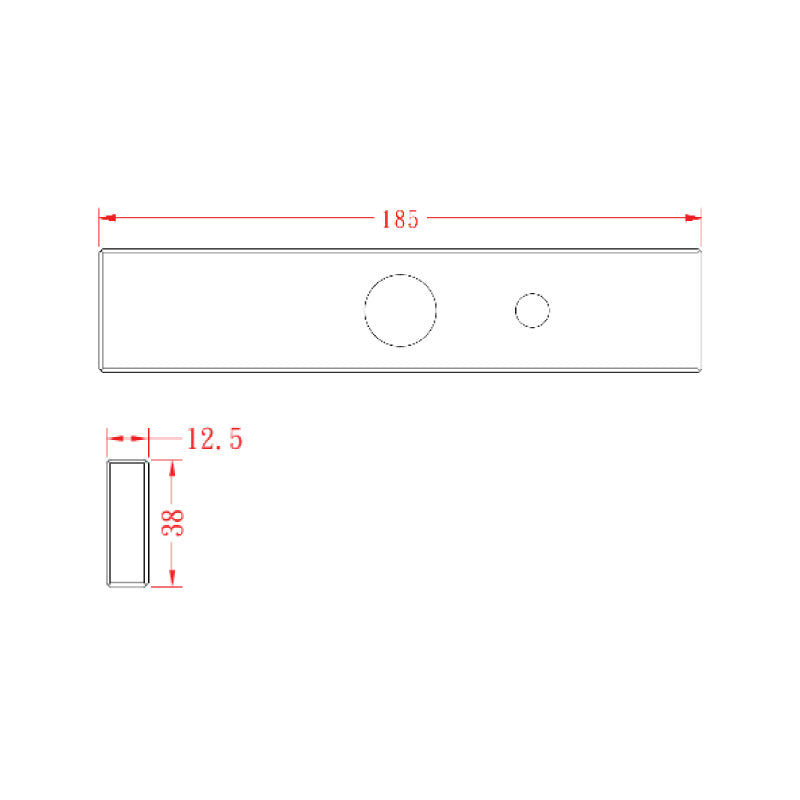

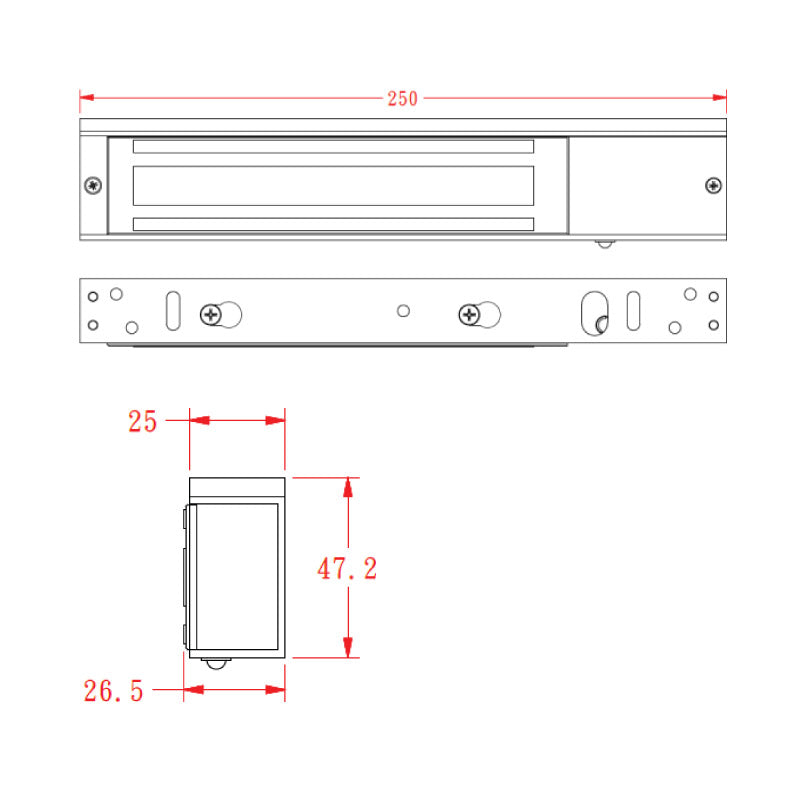

• Compact Dimensions: Lock - 250 x 47.2 x 26.5mm; Armature - 185 x 38 x 12.5mm
• 1-year manufacturer warranty ensures confidence and support
