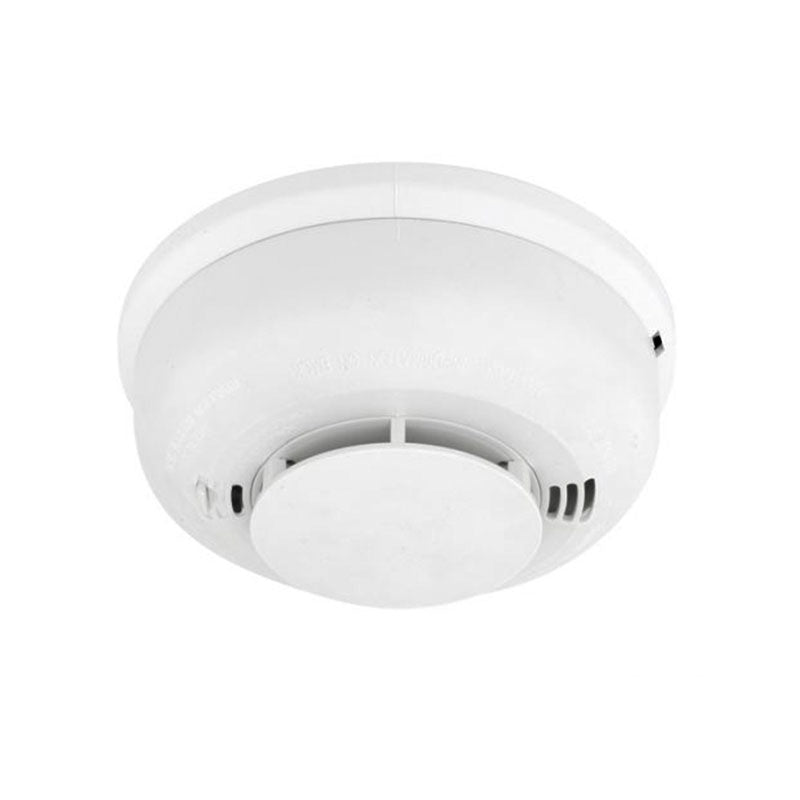

Photoelectric 4-Wire Smoke Detector
The SMODET4-N is a hardwired photoelectric 4-wire smoke detector with integral temp-3 sounder that is designed for open area protection.
• 9V to 24V DC Operation
• NO/NC Change over alarm relay contacts
• 8 second alarm verification feature Audible emergency evacuation signal (ISO8201)
• ‘HUSH’ / Test Push Button
• Interconnects up to 24 smoke alarms
• Certified to AS3786:2014 standard
• Dimensions: Ø135 x 55mm, Weight: 220g
