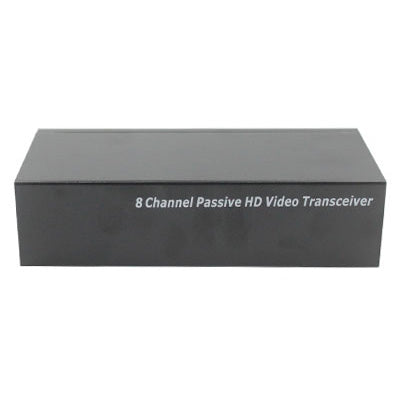

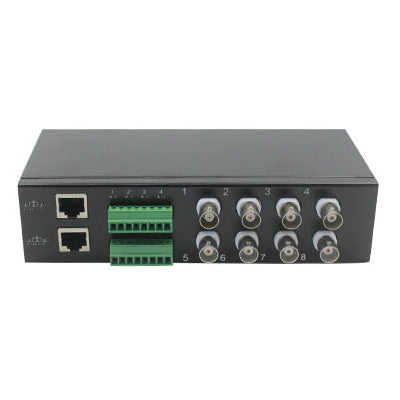

8-Channel Passive HDCVI / Analogue Balun

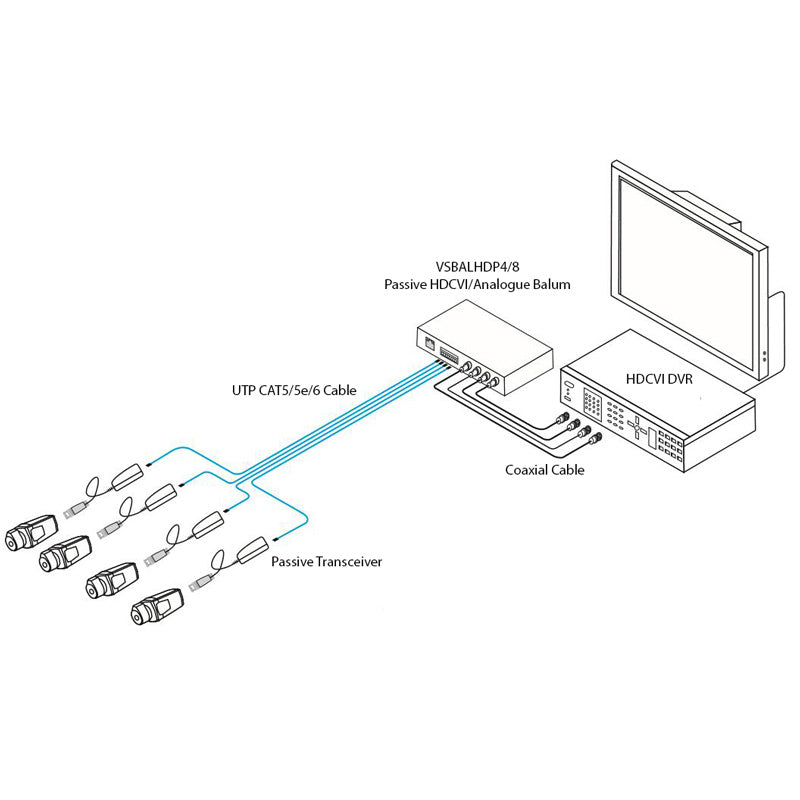

This compact module lets you transmit video from up to eight cameras (HDCVI, HDTVI, AHD, or analogue) over standard network cabling, eliminating the need for separate coax runs. It's great for retrofits, structured installs, or cost-conscious projects, delivering high-definition signals passively (no power required) with strong surge protection and a low-profile design.

Key Features:

• Supports 8 Video Channels: Compatible with HDCVI, HDTVI, AHD, and analogue camera systems
• Extended Transmission Distances: Up to 400m passive-to-passive, or 600m passive-to-active using UTP cable
• Flexible Cable Connections: Accepts both RJ45 and 8-pin terminal block inputs
• Built-In Surge Protection: Shield your video gear with 2 kV differential and 4 kV common-mode protection
• Top-Tier Interface Rejection: Better than 60 dB noise suppression keeps your footage clean
• Compact & Rack-Mount Ready: Measures 180 x 100 x 45mm and includes rack ears and mount screws
• Fully Passive Design: No power source needed for each channel - saves installation complexity and costs
