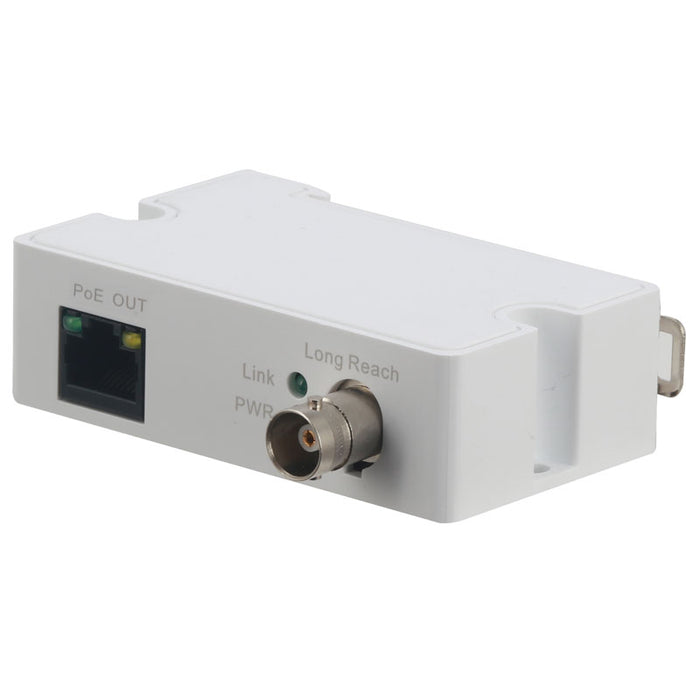

Ethernet over Coax Transmitter

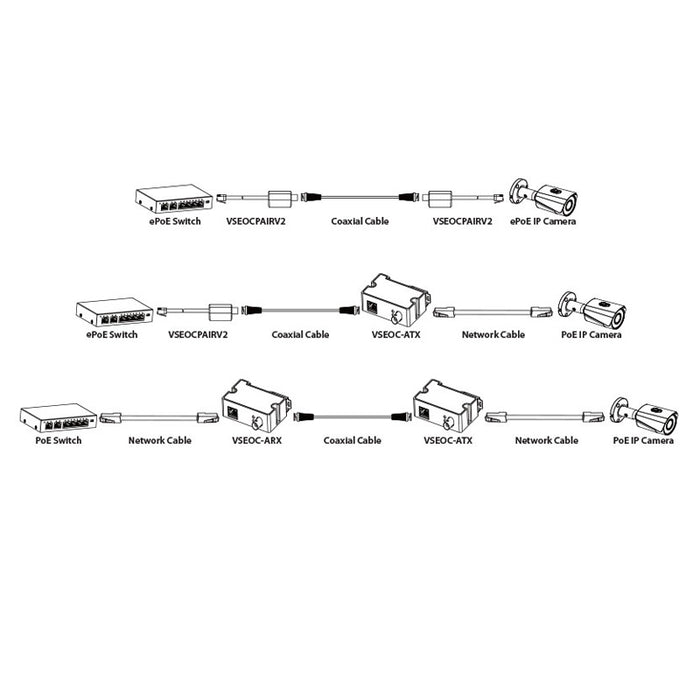

The VSECO-ATX transmitter converts a standard Ethernet connection (with optional Power over Ethernet support) into a signal you can send over existing coaxial cables (like RG59). A perfect match for the VSEOC-ARX receiver, this devices enables IP camera networks without rewiring - ideal for retrofit installations in CCTV systems or other IP setups.

Key Features:

• 1 x RJ45 (10/100 Mbps) port & 1 x BNC port
• Ethernet Standards: IEEE 802.3 & 802.3u support
• PoE Ready: Supports IEEE 802.3af/at for powering devices
• Range: Up to 400m @ 100 Mbps, or 1000m @ 10 Mbps over RG59 coax
• MDI/MDIX Auto-Sensing: No need for crossover cables
• DIN Rail Mountable: Easy mounting in electrical cabinets or racks
• Overrating Temp: -30°C to +65°C, suitable for harsh environments
• Low Power Draw: Under 2 W consumption
• Surge Protection: 4 kV common mode and 2 kV differential mode protection
