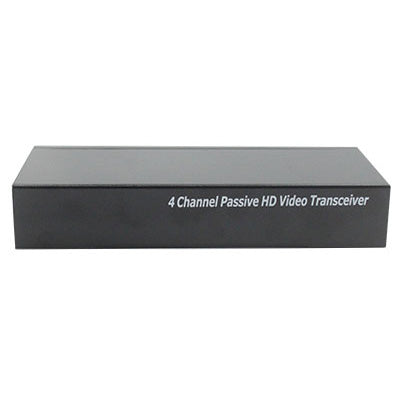

4-Channel Passive HDCVI / Analogue Balun

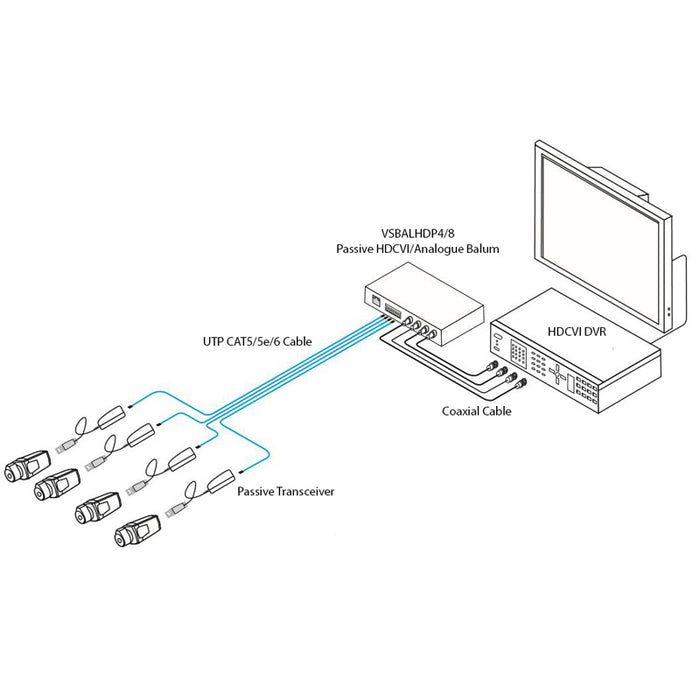

This compact balun lets you transmit up to four HD video feeds (HDCVI, HDTVI, AHD) over a single CAT5/5e/6 cable, reducing installation complexity and cable costs. Whether for retrofit installations or streamlined new builds, it's the perfect passive solution - no power required.

Key Features:

• Handles Up to 4 Simultaneous Channels: Supports HDCVI, HDTVI, AHD, and analogue CVBS formats
• Extended Transmission Distances:
  • Passive to passive: up to 400m (HDCVI 720p)
  • Passive to active: up to 600m
  • AHD 720p: up to 350m, AHD 1080p: up to 200m
  • HDCVI/HDTVI 1080p in the range of 200-250m
• Dual UTP Connection Options: Connect via RJ45 or 8-pin terminal block
• Built-In Surge Protection: Protects against electrical interference, with 2 kV (UTP) and 4 kV (BNC) tolerance
• High Interference Rejection: Over 60 dB suppression keeps video clear
• Compact & Rack-Ready: Includes rack-mount ears and pads for tidy installations
• Fully Passive: No external power needed - simplifies setup and maintenance
