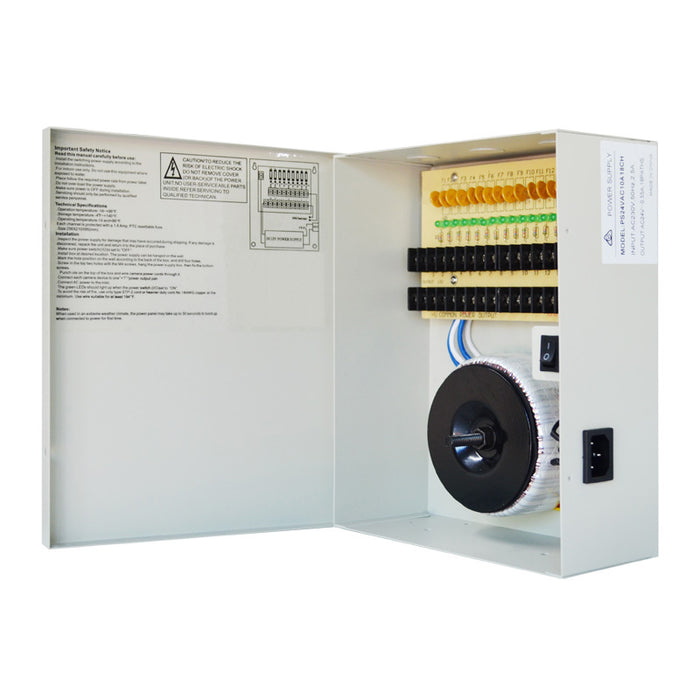

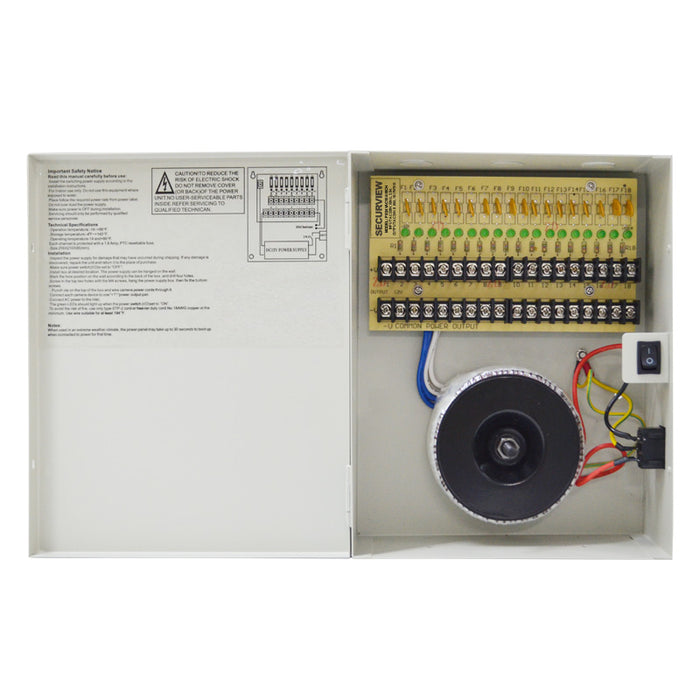

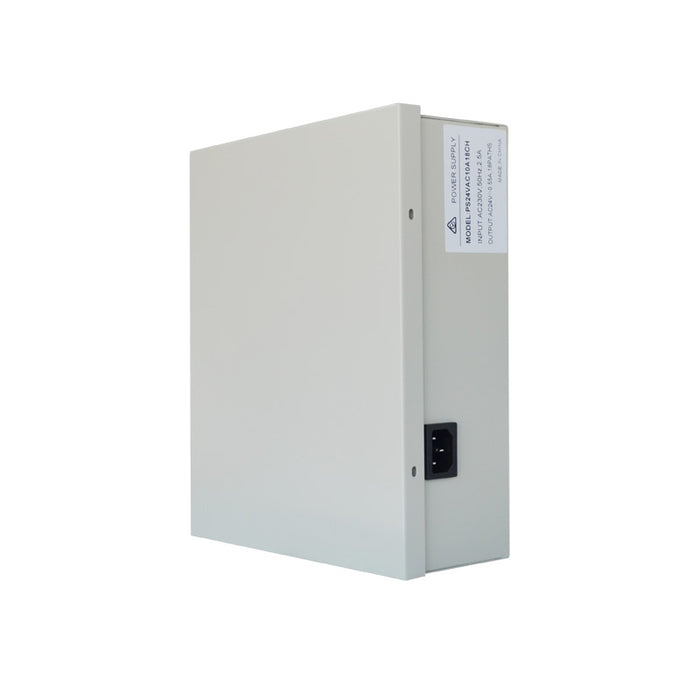

24VAC 18 Channel 10A Heavy Duty Transformer - CCTV Power Supply

This heavy-duty 24VAC transformer power supply is designed specifically for CCTV applications, delivering stable and reliable power for up to 18 cameras (rated at less than 500mA each). Housed in a compact indoor enclosure, it features short circuit, high voltage, and over current protection to ensure uninterrupted operation.

Product Features:

• 18 individually fused outputs with LED indicators
• Thermal Cut-off protection (TCO) on each panel
• Short circuit, high voltage & over current protection
• Input voltage: AC 100120V / 220240V
• Output voltage: AC 24V ±5%
• Total output current: 10A / 240W
• Compact & efficient design
• Dimensions (mm): 255(H) x 210(W) x 95(D)

Product Highlights:

• Thermal Cut-off Protection (TCO): Each output is independently fused with a PTC and LED status indicator. A fault affects only the individual output
• Automatic Short Circuit Recovery: If a short circuit occurs, the output fuse disconnects. Once cleared, it automatically resets.
