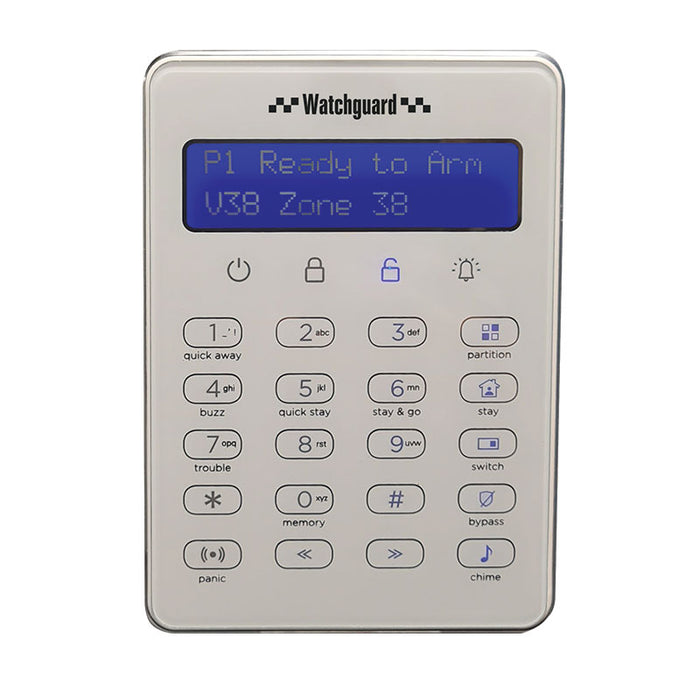

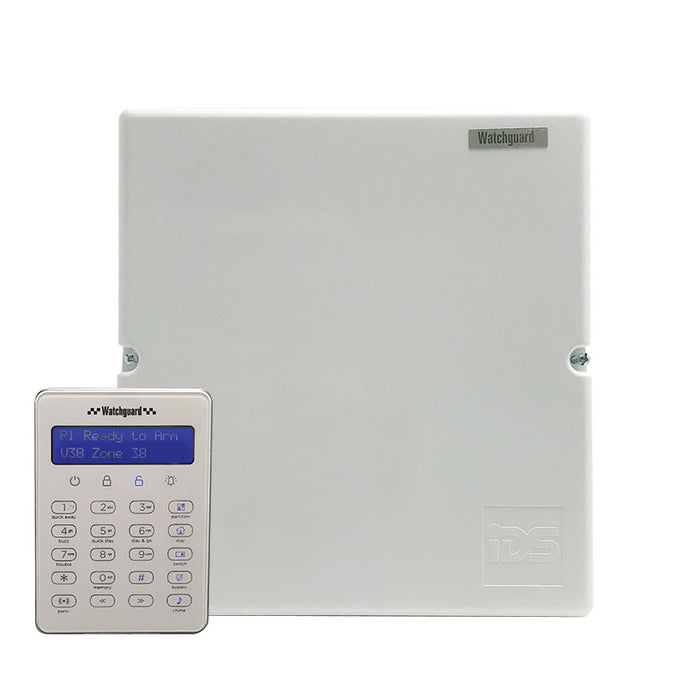

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad (White)

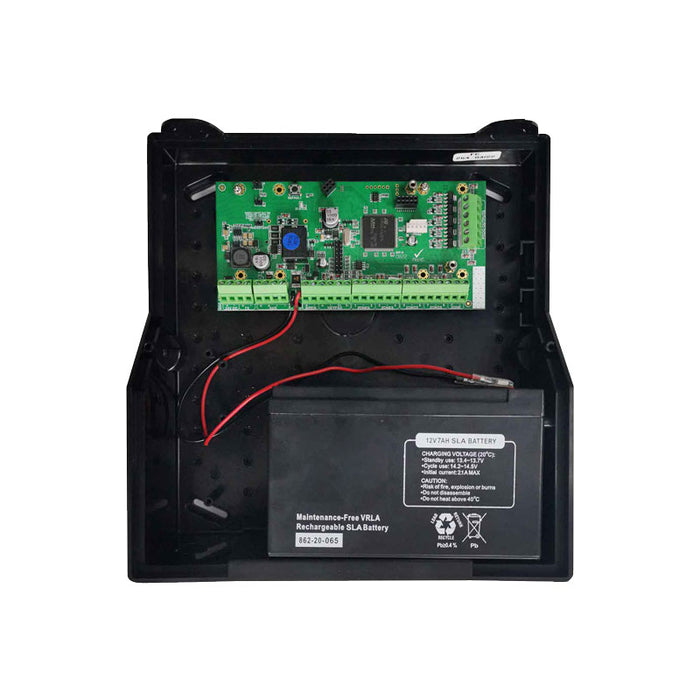

The WGAP864PW2 is a high-performance, microprocessor-based alarm panel designed for both home and commercial security. Offering 8 programmable zones (expandable to 64) and eight partitions, it provides immediate notification for burglary, fire, medical, and panic events. With a dedicated panic zone, monitored siren output, auxiliary power outputs, and five programmable outputs (expandable to 42), this system delivers flexible and reliable protection.

Quick Programmable:

Program via USB in under 30 seconds.* The menu-driven interface ensures easy configuration.

Key Features:

• 8 programmable, end-of-line supervised zone inputs & 8 alarm partitions
• 5 programmable outputs (expandable to 41 with Wired Zone Expander module)
• Programmable loop response time
• Auto arm/disarm capability per partition & by schedule
• Optional tamper reporting per zone with double end-of-line resistors (12k & 4k7)
• EEPROM memory retains data during total power loss
• Dual reporting to two independent central base stations
• 3 quick arm modes: Away / Stay (no exit delay) / Stay (with exit delay)
• Supports up to 128 user codes
• Event log capacity for 1,000 entries
• False alarm reduction technology

Notes:

• Battery sold separately
• Requires 24V DC power supply (previous models used 16V AC)
• USB programming cable sold separately (Model: WGAPCABLEUSB)
