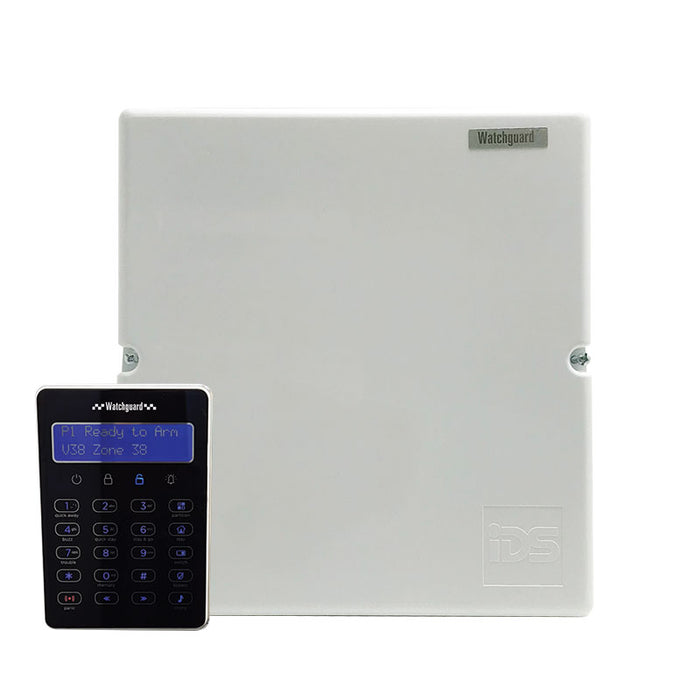

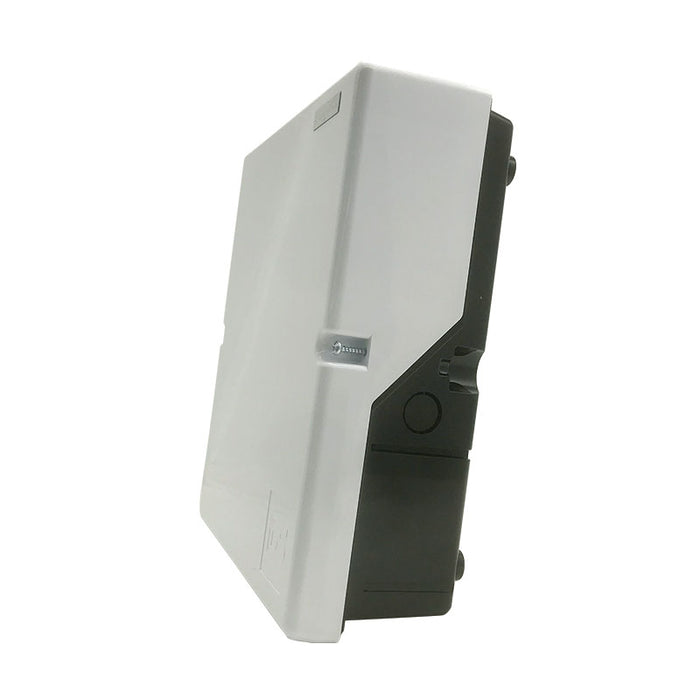

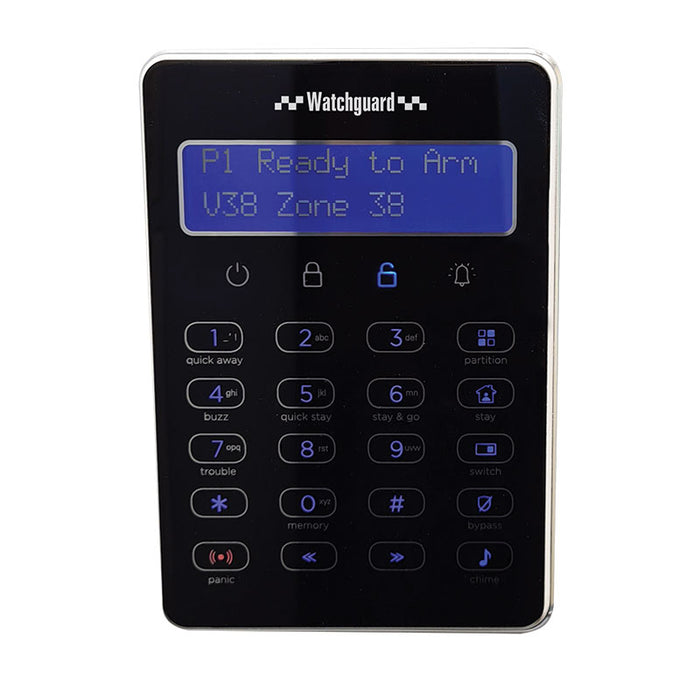

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad (Black)

The WGAP864PB2 is a versatile, microprocessor-based alarm panel offering full 8/64 zone functionality with 8 partitions. Ideal for home or commercial use, this panel provides immediate notification for burglary, fire, medical, and panic events. Featuring a dedicated panic zone, monitored siren output, auxiliary power outputs, and 5 programmable outputs (expandable to 41), it allows flexible integration for a variety of trigger and switching functions.

Quick Programming:

Program via USB in under 30 seconds.* Menu-driven setup makes configuration simple and efficient.

Key Features:

• 8 programmable, end-of-line supervised zone inputs & 8 alarm partitions
• 5 programmable outputs (expandable to 41 with Wired Zone Expander module)
• Programmable loop response time
• Auto arm/disarm capability per partition & by schedule
• Optional tamper reporting per zone using double end-of-line resistors (12k & 4k7)
• EEPROM memory retains all data during power loss
• Dual reporting to two independent central base stations 3 quick arm modes: Away/Stay (no exit delay)/Stay (with exit delay)
• 128 user codes
• Event log capable of 1,000 entries
• False alarm reduction features

Notes:

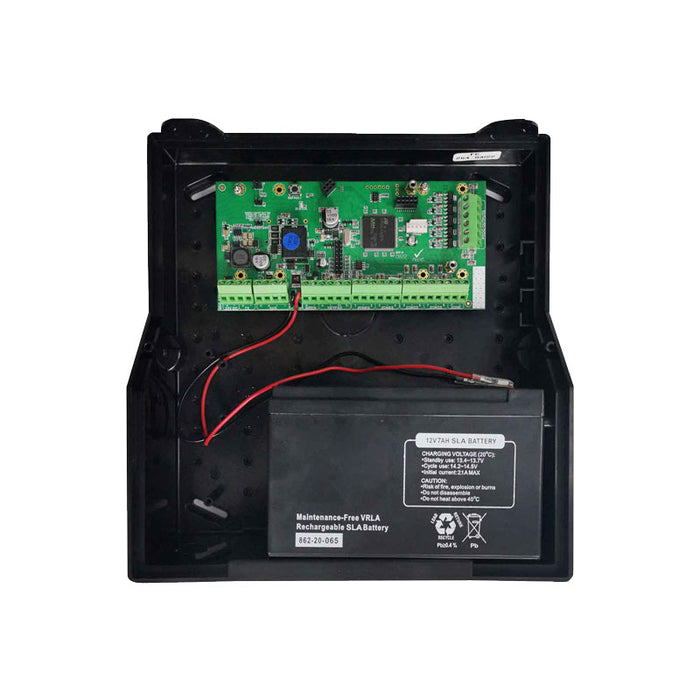

• Battery sold seperately
• Requires 24V DC power supply (previous models used 16V AC)
• USB programming cable sold separately (Model: WGAPCABLEUSB)
